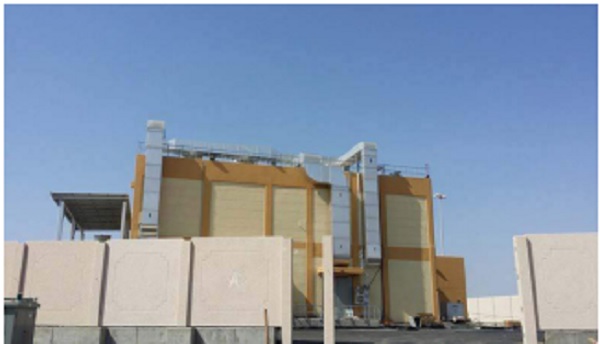

Thuwal Town Substation
Thuwal | Saudi Arabia
- The construction of fully automated (IEC 61850) new “Thuwal Town.” on turnkey basis with Three (03) incoming 110kV feeder bays along with associated MV switchgear including Twenty-Three (23) outgoing cable feeders in a time frame .Single Line diagram, Layout drawings and civil & architectural works in substation.
- Supply, Install & Commission 2×50/67MVA, 110/13.8kV Power Transformers & 2x7MVAR 13.8kV Capacitor Banks.
- SCADA & LDC Extension .
Key figures

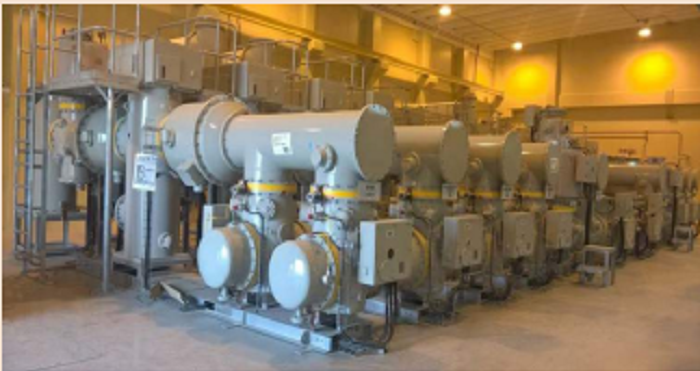

- 110/13.8kV, 9 110kV Bays GIS
- (36) no. 13.8kV Switchgear Circuit Breaker
- (03) no. 7MVAR Capacitor Banks
- (02) no. 54/73MVA Power Transformers
- (02) no. Auxiliary Transformers
73
MVA of Power Transformers
